DIAGNOSTIC CORONARY ANGIOGRAPHY

DIAGNOSTIC CORONARY ANGIOGRAPHY

CORONARY ANATOMY

The right coronary artery (RCA) arises from the right coronary sinus and runs in the right atrioventricular (AV) groove (Fig. 12.1). The conus artery is typically the first branch that arises from the RCA and supplies the right ventricular outflow tract. The sinoatrial nodal and AV nodal branches also arise from the RCA and supply the sinus node and the AV node, respectively. Marginal branches usually arise from the mid-RCA and supply the right ventricular wall. The distal RCA gives rise to right posterolateral branches and the posterior descending artery (PDA) in 85% of cases (defined as right dominance). The PDA arises from the left circumflex (LCX) in 8% of cases (defined as left dominance), and from both the RCA and LCX in 7% of cases (defined as co-dominance). The PDA runs in the posterior interventricular groove and supplies the posterior aspect of the interventricular septum.

Coronary arteries and cardiac veins

FIG 12.1 Coronary arteries and cardiac veins.

The left main coronary artery arises from the left coronary sinus and bifurcates into the left anterior descending (LAD) and LCX arteries (Fig. 12.1). In a minority of cases, the left main coronary artery trifurcates into the LAD artery, ramus intermedius artery, and LCX artery. The LAD artery runs in the anterior interventricular groove toward the apex of the heart and supplies the anterior wall of the left ventricle. Septal perforator branches arise from the LAD artery and supply the interventricular septum. Diagonal branches also arise from the LAD artery and supply the anterolateral wall of the left ventricle. The LCX artery runs in the left AV groove and provides obtuse marginal branches that supply the posterolateral wall of the left ventricle. As noted previously, in a minority of cases, the PDA will arise from the LCX artery.

There are many schemes for describing coronary anatomy: the Coro- nary Artery Surgery Study (CASS) classification, the Synergy Between PCI With Taxus and Cardiac Surgery (SYNTAX) classification, and the Bypass Angioplasty Revascularization Investigation (BARI) modification of the CASS map are some of the most widely accepted.



CORONARY ARTERY ANOMALIES

Coronary artery anomalies are typically a result of abnormal embryological development and are found in 1% to 1.5% of cases. Most coronary artery anomalies are clinically benign. The most common coronary artery anomaly is the presence of separate origins of the LAD and LCX arteries, which occurs in 0.4% to 1% of cases and may be associated with a bicuspid aortic valve. Clinically significant anomalies include a coronary artery originating from the opposite coronary sinus (e.g., left main coronary artery originating from the right coronary sinus), the presence of a single coronary ostium leading to a single coronary artery, a coronary artery coursing between the great vessels (e.g., between the aorta and pulmonary artery), and a coronary artery leading to decreased oxygenation of the myocardium (e.g., a coronary artery originating from the pulmonary artery or a coronary artery–ventricular fistula) (Fig. 12.2).

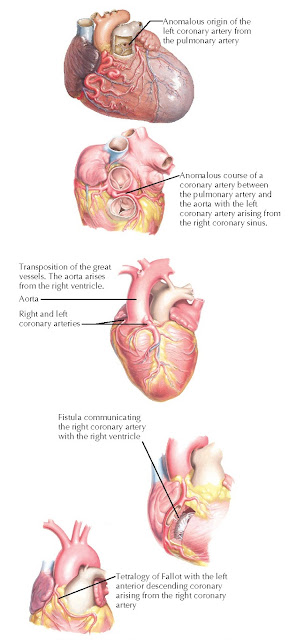

Congenital coronary artery anomalies.

FIG 12.2 Congenital coronary artery anomalies.

PREPROCEDURAL EVALUATION

Obtaining a history, physical examination, routine laboratory data (such as chemistry, complete blood count, and coagulation studies), a 12-lead ECG, and a transthoracic echocardiogram can provide valuable information for procedural planning. An accurate history can help determine patient candidacy for PCI and dual antiplatelet therapy in the event that the angiographic findings demonstrate obstructive CAD. Physical examination of the peripheral pulses can help plan the site of vascular access. Stress testing can be performed to risk stratify patients before coronary angiography and to help localize the area of myocardial ischemia.

Indications

The American College of Cardiology and American Heart Association have published guidelines on the indications for diagnostic coronary angiography (Table 12.1). Patients with acute coronary syndromes should undergo emergent or urgent diagnostic coronary angiography. In particular, patients with ST-elevation myocardial infarction (STEMI) should undergo emergent coronary angiography with the goal of establishing reperfusion with angioplasty within 90 minutes of clinical presentation. Patients who have a non-STEMI or unstable angina, and who are at intermediate or high risk for adverse events should undergo early coronary angiography within 24 to 72 hours. Patients with high-risk features (e.g., refractory angina, hemodynamic or electrical instability, or cardiogenic shock) should undergo coronary angiography within the first few hours of clinical presentation.


Patients with stable angina and certain clinical features may undergo coronary angiography without previous stress testing. For instance, patients who have symptoms highly typical of angina or patients who have symptoms with minimal or no exertion should be directly referred for coronary angiography without previous stress testing. Additional clinical features that may prompt referral for coronary angiography without previous stress testing include a history of myocardial infarction, previous percutaneous or surgical revascularization, and congestive heart failure.



CONTRAINDICATIONS

The only absolute contraindication to diagnostic coronary angiography is the lack of patient consent. There are many relative contraindications that can increase the risks of the procedure in patients with certain co-morbidities (Table 12.2). For example, acute renal failure or preexisting renal dysfunction, especially in patients with diabetes mellitus, can increase the risk of contrast-induced nephropathy. Electrolyte abnormalities and/or digitalis toxicity can increase the risk of arrhythmias during contrast injection. Active bleeding, severe thrombocytopenia, and/or severe coagulopathy from co-morbidities or medications (e.g., such as warfarin or the new anticoagulants) can increase the risk of vascular complications and/or bleeding risk in the setting of PCI. Decompensated heart failure, severe aortic stenosis, or uncontrolled hypertension can increase the risk of acute flash pulmonary edema and respiratory failure when the patient is required to remain supine during the procedure. Other relative contraindications include active infection, allergic reactions to iodinated contrast agents, severe peripheral vascular disease, pregnancy, and patient inability to cooperate.



PROCEDURAL TECHNIQUE

Diagnostic coronary angiography is routinely performed in a cardiac catheterization laboratory. Written informed consent must be obtained before the procedure. Patients should be informed of the indication, benefits, risks, and alternatives of coronary angiography. If there is a possibility of obstructive CAD that leads to PCI, patients should also be informed of the indication, benefits, risks, and alternatives of PCI before the procedure. Once in the cardiac catheterization laboratory, patients are prepared with antiseptic solution at the access site and draped in a sterile fashion. A time-out is performed with the physicians, nurses, and cardiovascular technologists to verify the patient, procedure, indication, access site, and any allergies. Sedatives with analgesics are then admin-istered intravenously for conscious sedation.

Arterial Access

Arterial access can be obtained via percutaneous puncture of the common femoral artery (CFA), brachial artery, or radial artery (Fig. 12.3). Although the femoral approach is historically the most commonly used site for arterial access, the radial approach has become increasingly popular and may be the preferred strategy in patients with morbid obesity, decompensated heart failure, or severe peripheral artery disease.

Left-sided heart catheterization.

FIG 12.3 Left-sided heart catheterization.

The femoral approach requires the proper identification of anatomic landmarks before vessel puncture (Fig. 12.4). The fluoroscopic landmark for the optimal CFA entry site is generally considered to be the upper one-half or the upper one-third of the femoral head. In a study of 200 femoral angiograms, the CFA bifurcated below the center of the femoral head in 98% of patients, whereas in another study of 208 femoral angiograms, the bifurcation of the CFA occurred below the upper one- third of the femoral head in 99% of patients. The access site can be confirmed under fluoroscopy and/or vascular ultrasound can be used. Arterial puncture above the inguinal ligament may lead to an increased risk of bleeding complications (e.g., a hematoma or retroperitoneal bleeding). Risk factors for vascular complications are both clinical and anatomic, and include age, female sex, weight, uncontrolled hypertension, previous arteriotomy at the same site, type and level of anticoagulation, arterial sheath size, renal failure, concomitant venous sheath, peripheral vascular disease, prolonged sheath duration, and location of the arteriotomy. Arterial puncture below the femoral head may lead to an increased risk of vascular complications (e.g., an arteriovenous fistula, a pseudoaneurysm, or a hematoma).

FIG 12.5 Radial artery access.

The hand receives dual circulation from the radial artery and the ulnar artery through the superficial and deep palmar arches (Fig. 12.5). The Allen test assesses the patency of the arch circulation and involves the simultaneous compression of the radial and ulnar arteries at the level of the wrist for 1 to 2 minutes, which leads to pallor of the hand, followed by the release of ulnar compression. The spontaneous return of color to the hand in 5 to 10 seconds indicates patency of the palmar arch. Although theoretically attractive, the Allen test is less widely used now than previously because it has not been shown to correlate with outcomes. The optimal access site for the radial approach is the point of radial artery pulsation, palpated approximately 2 cm proximal to the radial styloid process. Vasospasm is a possible vascular complication of the radial approach because the radial artery is a small-caliber vessel with a relatively large muscular media. To prevent vasospasm, a vasodilator such as verapamil is routinely administered intra-arterially through the sidearm of the sheath after obtaining radial access.

Coronary Artery Cannulation

A standard 0.035-inch, J-tipped guidewire is introduced through the sheath in the access artery and advanced to the ascending aorta. The guidewire is used to guide the coronary catheter to the aortic root, and is always advanced before the catheter to prevent the proximal edges of the catheter from causing vascular damage. Once the proximal end of the catheter is positioned in the root, the guidewire is removed from the catheter and the catheter is connected to the manifold. When the pressure transducer connected to the manifold confirms an appropriate aortic pressure waveform, the catheter is flushed with heparinized saline and loaded with contrast. Using fluoroscopy, the catheter is advanced or withdrawn as it is being rotated until it engages the ostium of the coronary artery. During coronary artery cannulation, the catheter location and pressure tracing should be carefully monitored to ensure that the catheter tip is coaxial with the ostium of the coronary artery and is not either against the arterial wall or obstructing flow in the artery. Coronary angiography is performed with cineradiography during injection of contrast. The left and right coronary arteries are typically cannulated by different catheters (Figs. 12.6 and 12.7). Catheter selection depends on the access site, the coronary artery being investigated, the location of the coronary ostium, the diameter of the aortic root, and operator preference.

Coronary arteries: angiographic views. AV, Atrioventricular; SA, sinoatrial.
FIG 12.6 Coronary arteries: angiographic views. AV, Atrioventricular; SA, sinoatrial.

Normal and abnormal coronary artery findings on angiography. LAD, Left anterior descending; LCX, left circumflex; PDA, pulmonary descending artery; PL, posterolateral; RCA, right coronary artery.

FIG 12.7 Normal and abnormal coronary artery findings on angiography. LAD, Left anterior descending; LCX, left circumflex; PDA, pulmonary descending artery; PL, posterolateral; RCA, right coronary artery.


In patients with a history of CABG, all bypass conduits should be investigated. Saphenous vein grafts are anastomosed to the anterior wall of the ascending aorta above the sinuses of Valsalva. Several strategies can be used to assist with graft cannulation, including a review of previous postsurgical angiograms, identification of markers that were placed during surgery at the ostium of the saphenous vein grafts, and use of different views (left anterior oblique [LAO] to cannulate grafts to the RCA and right anterior oblique [RAO] to cannulate grafts to the left coronary system). The left internal mammary artery (LIMA) is routinely used in surgical revascularization and typically arises anteriorly from the left subclavian artery, several centimeters distal to the vertebral artery (Fig. 12.8). A 0.035-inch guidewire is advanced through a catheter into the distal left subclavian artery either when the catheter is in the aorta or after it has been used to cannulate the left subclavian artery. The catheter is advanced into the subclavian artery and then slowly withdrawn with gentle counter clock wise rotation (so that the catheter tip faces anteriorly) until it cannulates the LIMA.

Left internal mammary artery (LIMA) and subclavian disease. LAD, Left anterior descending.

FIG 12.8 Left internal mammary artery (LIMA) and subclavian disease. LAD, Left anterior descending.



Angiographic Views

Comprehensive evaluation of the coronary arteries requires angiography in multiple views to ensure that all vessel segments are visualized without foreshortening or overlap (see Fig. 12.6). Rotating the image intensifier to different positions around the patient allows images to be obtained in different views. Angiographic views consist of a specific projection (e.g., RAO, LAO, or anteroposterior [AP]), with a specific angulation toward the head or foot of the patient (designated as cranial or caudal, respectively). The most common views for RCA angiography include the RAO projection, LAO projection, and AP projection with cranial angulation (see Figs. 12.6 and 12.7). The most common views for left coronary angiography include the RAO projection with cranial and caudal angulation, the LAO projection with cranial and caudal angulation, and the AP projection with cranial and caudal angulation.

Angiographic Analysis

The essential components of coronary angiographic analysis are listed in Table 12.3. The origin, caliber, course, and branches of all major coronary arteries should be identified. The presence, location, severity, and appearance (e.g., eccentricity or calcification) of any atherosclerotic plaque in the major coronary arteries should be described. The severity of luminal narrowing can be quantified by comparing the minimal diameter of the narrowed coronary segment with that of an adjacent normal-appearing reference segment. Although experienced observers are able to visually estimate the degree of stenosis, the severity of the stenosis can be quantified using calipers or quantitative computer angiography. The flow in coronary arteries can be defined using the Thrombolysis In Myocardial Infarction (TIMI) flow grading scale. TIMI 3 flow describes normal flow with complete filling of the distal vessel. TIMI 2 flow describes delayed or sluggish flow with complete filling of the distal vessel. TIMI 1 flow describes faint flow beyond the stenosis with incomplete filling of the distal vessel. TIMI 0 flow describes a completely occluded artery with no distal flow beyond the lesion. The presence of anomalous arteries, myocardial bridging, fistulas, dissections, aneurysms, and spasm should also be noted. In patients with a history of CABG, graft patency and the presence of competitive flow should be observed. In the setting of total occlusion of a coronary artery, prolonged cineradiography allows the capture of late-filling collateral circulation that may exist (Fig. 12.7). The collaterals can either originate from the occluded artery or a different coronary artery or bypass graft.



LIMITATIONS

Coronary angiography has several limitations in the evaluation of CAD. First, it produces a two-dimensional representation of three-dimensional coronary anatomy. As such, the severity of CAD may be underestimated. Second, coronary angiography delineates the vessel lumen but is unable to provide accurate information about the vessel wall. Angiographic findings of normal vessel lumen cannot exclude underlying disease of the coronary endothelium. Furthermore, proper interpretation of stenosis severity involves identification of an appropriate reference segment with which to compare the diseased segment; this may prove to be difficult because of the possibility of inaccurate vessel wall delineation.

These limitations have led to advances in technology that can supplement coronary angiographic analysis. Fractional flow reserve (FFR) uses a pressure wire (coronary guidewire attached to a pressure transducer) to measure the intracoronary pressure distal to a stenosis, and compares this distal intracoronary pressure with aortic pressure at rest and during maximal coronary hyperemia (see Chapter 26). FFR is calculated based on this comparison, can help determine the hemodynamic significance of a lesion, and is clinically useful in the assessment of an angiographically intermediate lesion. Intravascular ultrasound (IVUS) uses a catheter with an ultrasound core to provide cross-sectional images in which the three layers (intima, media, and adventitia) of the vessel can be identified and characterized (Fig.12.9). Optical coherence tomography (OCT) also uses an intracoronary catheter, but with an optical imaging core that provides high-resolution cross-sectional images. OCT and IVUS can be used to assess the size of the artery, the vascular wall and plaque composition, and burden, and can be used to assess and optimize PCI results.



Intravascular ultrasound.
FIG 12.9 Intravascular ultrasound.

COMPLICATIONS

The major complications that can occur during or immediately after coronary angiography include death, myocardial infarction, and stroke. The risk of major complications is 0.3%. Minor complications include coronary artery dissection, bleeding, vascular complications, arrhythmias, and contrast reactions. The risk of any of these complications is still <2%. Patient comorbidities that increase the risk of complications include acute coronary syndrome, left main CAD, shock, congestive heart failure, severe valvular disease, renal failure, peripheral vascular disease, increased age, and previous anaphylactoid reaction to contrast media. Complication rates from coronary angiography have remained remarkably consistent across registries from the 1980s. Complication rates from PCI have been the focus of more recent registry analysis.
